Safety Glasses
Nitrile Gloves
Ratchet
Sockets
Filter Wrench
Motor Oil
Oil Filter
Jack
Jack Stands
Drain Pan
Shop Towels
Funnel
Step 1: Raise the Front End of the Vehicle
Run the engine until it reaches operating temperature, or until the fan comes on. Then, turn off the engine. First, raise and support the front end of your vehicle with a jack.
|
Do It Right: Learn how to safely lift your vehicle with this How-To page: How to Safely Jack Up Your Vehicle |
Step 2: Place an Oil Drain Pan
Slide a drain pan into place under the drain plug.
Step 3: Remove the Drain Plug
Use your ratchet and 13mm socket to remove the drain plug and let the oil run out completely.
Step 4: Wipe Any Excess Oil from Surfaces
Use a rag or shop towel to wipe any excess oil from around the opening. Then, wipe down the drain plug.
Step 5: Replace the Drain Plug
Replace the drain plug and tighten it until secure.
Step 6: Locate the Oil Filter
Locate the oil filter and make sure your drain pan is directly under it.
Step 7: Loosen the Oil Filter
Use the filter wrench to loosen it, if needed.
Step 8: Remove the Oil Filter
Finish removing it by hand and pour the oil from the filter into the drain pan.
|
Do It Right: Wipe down the area where the filter was threaded and make sure the old o-ring came off with the filter. |
Step 9: Lubricate the New O-Ring
Lubricate the new o-ring with fresh oil.

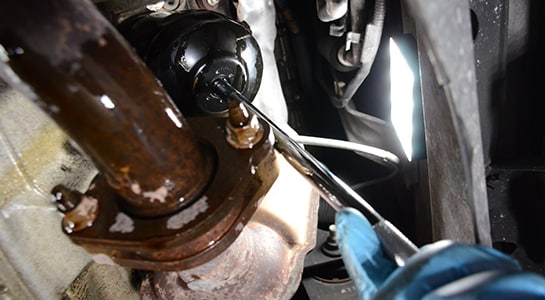

Step 10: Install the New Oil Filter
Thread the new oil filter into place by hand. Once the o-ring is against the oil pan, give the filter three-quarters of a turn to secure it.
Step 11: Locate the Oil Fill Cap
Open the hood and locate the oil fill cap. Remove the cap.
Step 12: Refill the Motor Oil
Refill the oil with the amount and type of oil recommended by the manufacturer. In our case, we’ll put in 3.7 quarts of 5W-20.
Step 13: Check the Oil Level
Replace the oil fill cap and use the dipstick to check the oil level.
|
Do It Right: Start the engine and let it run for at least 3 minutes. Then, turn off the engine and check the oil level again. |
Step 14: Check for Leaks
Make sure there are not any leaks under the vehicle. Once you are sure there are not any leaks, slide your drain pan out from under the car.
Step 15: Lower the Vehicle and Close the Hood
It’s now safe to lower the front end and close the hood.
Step 16: Reset the Oil Life Indicator
To reset the oil life indicator, press and release the SETUP button twice until you see the “Oil Life Percentage Hold Reset” displayed. Press and hold the RESET button for two seconds or until “Oil Life Set to 100%” is displayed.
These step-by-step instructions and detailed video show an oil filter replacement and oil change on a 2008 Ford Escape XLT, and will be similar for 2008, 2009, 2010, 2011, and 2012 Ford Escapes. Replacing the oil filter and old oil ensures there is fresh, filtered oil to properly cool and lubricate your Escape’s engine components. Low oil levels, a clogged oil filter, and dirty oil can all cause engine damage, so make sure to perform a complete oil change when the Oil Change light appears or at the interval recommended in your owner’s manual. If you notice reduced engine performance, oil pressure problems, or metallic noises from the engine, you can also perform oil changes more often to ensure the best engine performance and service life.
