How to Use a Front Wheel Drive Hub Press | Loaner Tool Program

A front wheel drive hub press can be used to press out a CV shaft in order to remove a front hub from a front wheel drive vehicle. For some applications, the hub press can be used with a slide hammer set to remove hubs from spindles. The front wheel drive hub press is one of over eighty tools we have available in our Loaner Tool Program. The Loaner Tool program can help you save money on your repairs by allowing you to pay a deposit equal to the cost of the tool, then receive a refund of your full deposit when you return the tool to the store.

Tools & Materials

Front Wheel Drive Hub Press Front Wheel Drive Hub Press

Slide Hammer Slide Hammer

Eye Glasses Eye Protection

Gloves Nitrile Gloves

Ratchet & sockets Ratchet & Sockets

Axle Nut Socket Set Axle Nut Socket Set

Impact Wrench Impact Wrench

Breaker Bar 1/2” Drive Breaker Bar

Step-By-Step Instructions on Using a Front Wheel Drive Hub Press

A CV (constant velocity) shaft is an essential drivetrain component constructed with special joints to help your vehicle maintain continual speed as power is transferred from your transmission to the wheels. These shafts are common in front-wheel drive vehicles. The instructions below will focus on pressing a CV shaft out of a hub, and will be similar for a broad range of vehicles, but be sure to know the specifics for your vehicle before getting started.

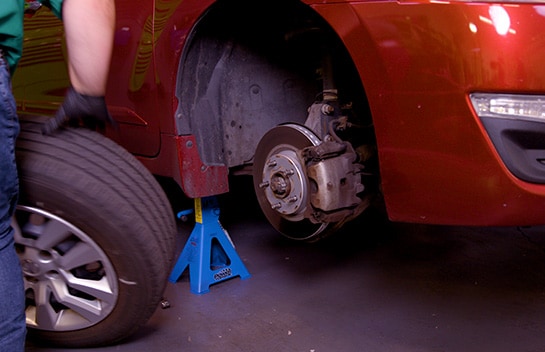

Once the front end is raised, remove the wheel on the side where you’ll be working.

Step 1: Prepare Your Vehicle

Park on a level surface. Lift and support your vehicle according to the manufacturer’s specifications. Remove the wheel.
Show More Show Less

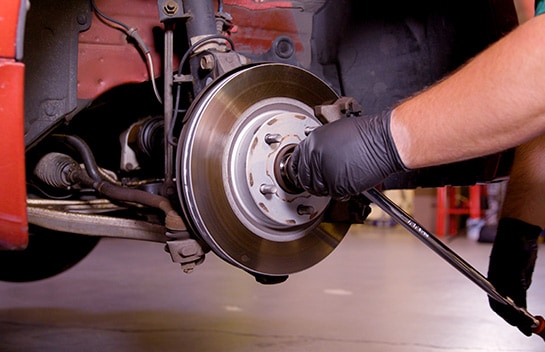

Use a breaker bar with our Axle Nut Socket Set to remove the axle nut.

Step 2: Remove the Axle Nut

Remove the nut securing the CV axle to the hub, if needed. You may need our Axle Nut Socket Set, Loaner Tool number 67068, to do this. In many cases, the CV shaft can be pushed through the hub without removing other components, but in other cases, at least the tie rod and ball joint may need to be separated to create space for removal.
Show More Show Less

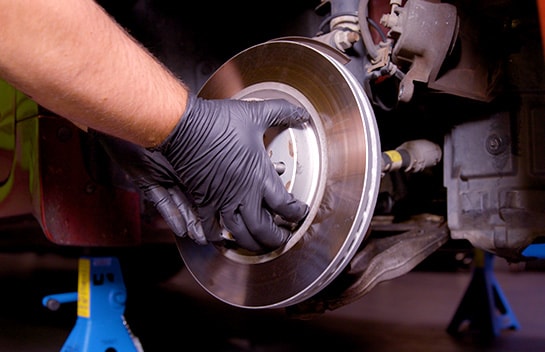

Remove the brake rotor to gain access to the hub.

Step 3: Remove Other Components If Needed

Remove other components like the brake caliper and rotor to gain access to the hub.
Show More Show Less

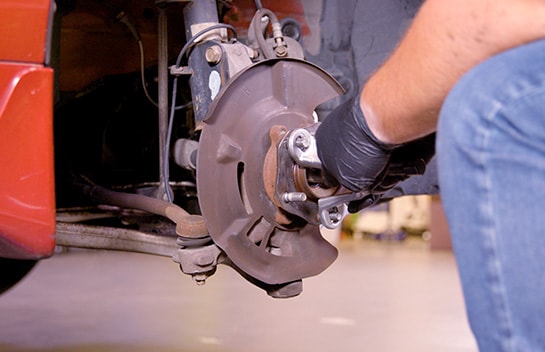

Use the lug nuts you removed to attach the hub puller to the studs.

Step 4: Attach the Hub Puller

Attach the hub puller to the hub using the lug nuts you removed, making sure it’s tight.
Show More Show Less

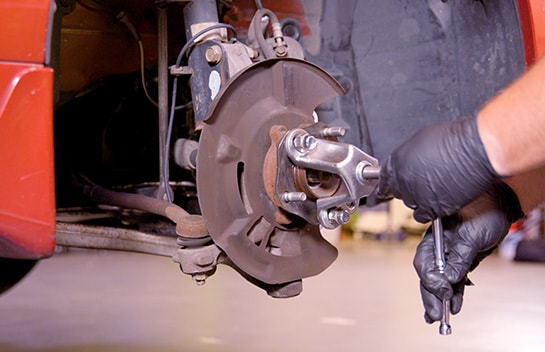

Use a 3/4” or 19mm wrench or socket to press the axle shaft through the hub.

Step 5: Press the Shaft Through the Hub

Use a ¾" or 19mm wrench or ratchet and socket to turn the shaft clockwise and apply pressure to the axle shaft until it’s pressed all the way through the hub.
Show More Show Less

O’Reilly Auto Parts Loaner Tool Program

The Loaner Tool Program at O’Reilly Auto Parts includes all the tools you need to complete your DIY repair in no time. Find over 80 tools, including steering and suspension, electrical and diagnostic, engine and clutch, air conditioning and cooling, ball joint, pullers, exhaust, power steering, tie rod and pitman arm, tube bending, and brake, tire, and wheel Loaner Tools. If you’re not sure which tool you need, our trusted parts professionals can provide you with the information you need to get the job done right.
